Coastal Construction Hydraulic Pile Driver High Accuracy For H Beam

  • Coastal Construction Hydraulic Pile Driver High Accuracy For H Beam
  • Coastal Construction Hydraulic Pile Driver High Accuracy For H Beam
  • Coastal Construction Hydraulic Pile Driver High Accuracy For H Beam
  • Coastal Construction Hydraulic Pile Driver High Accuracy For H Beam
  • Coastal Construction Hydraulic Pile Driver High Accuracy For H Beam
  • Coastal Construction Hydraulic Pile Driver High Accuracy For H Beam
Place of Origin SHANGHAI
Brand Name VIBRA
Model Number FV-400
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details 7.6
Delivery Time 7-35 days
Payment Terms L/C, T/T, D/P
Supply Ability 15 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hydraulic Vibrating Pile Driver Feature High Precision Suitable For All Brands Of Excavator
Operation Pressure 32Mpa Arm Weight 750kg
Hammer Weight 2700kg Vibration Frequency 3200rpm
Centrifugal Force 485 Kn Material Steel, Core Materials Are All Imported
HS Code 8430100000 Type New And Used Both Available
Highlight

Coastal Construction Hydraulic Pile Driver

,

high accuracy hydraulic pile driver

,

H beam hydraulic pile hammer
Leave a Message
Product Description

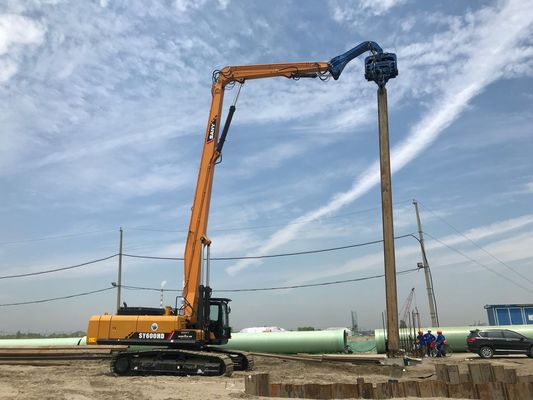

Medium and Large Excavator Mounted Hydraulic Vibrating Pile Driver



This series of models have higher requirements for the overall design and manufacturing level. Drawing on the advanced technology of large hydraulic vibration hammer from Europe and America and our years of experience in the industry, we have developed a unique box structure with high reliability and longer average service life of bearings, which is in the leading position in the same industry.



10 ~ 18 meters of sheet pile construction is the mainstream of the market, we provide a variety of eccentric groups for selection, strength optimization for each component, with higher safety and a wide range of adaptability to various geological conditions.





Features



  • Pile driving steel sheet pile, cement pile, steel rail pile, iron plate, H steel
  • Quick converting operation; Applied to various working environments.
  • Compared to other systems, less force required for pile pulling
  • Not damage the top or bottom of steel pipe pile, steel plate pile and steel rail pile.
  • Not damage the building even often work near it.
  • Adopted Rubber sheath to reduce noise and vibration, the operation is quiet and the working period is short; It is helpful to overcome environmental problems.
  • According to the placement direction of sheet pile and site conditions, the sheet pile can be clamped or lowered by positive and negative rotation of 180 °. The vibration frequency can be adjusted by two levels, and the two-level double pumps are combined to greatly increase the excitation force.



Coastal Construction Hydraulic Pile Driver High Accuracy For H Beam 0



Technical Parameter



Item FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration Frequency (rpm) 2500 2800 3200 3200 3200 3200 3200
Operation Pressure (Mpa) 30 32 32 32 32 32 32
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max.Pile Length (m) 10 12 12 12 15 15 18
Arm Weight (kg) 500 500 670 670 670 750 750
Hammer Weight (kg) 1700 1900 2100 2300 2400 2600 2700
Excavator (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60



About Us



Shanghai Ye Kun Construction Machinery Co., Ltd. is one specialized is engaged in the vibration sinking pile drawing machine equipment production, sale and service of technology-oriented enterprises, products mainly emerging a high-speed hydraulic pile drawing machine and peripheral accessories, equipment widely used in all kinds of foundation engineering construction.



After a short period of development, the company won the recognition of customers, and the annual sales growth doubled. Marketing the country with the VIBRA brand and export it. The company′s production of mini hydraulic pile driver, vibration hammer and other products quality has reached the advanced level of the industry.



Our company is consisting of a young, enthusiasm professional team. Adhere to client as priority, Quality as first concern, Management as foundation. We are working for the direction to become the most professional and comprehensive hydraulic vibrating pile driver manufacture and service supplier.



Coastal Construction Hydraulic Pile Driver High Accuracy For H Beam 1



Coastal Construction Hydraulic Pile Driver High Accuracy For H Beam 2

FAQ



Q: How long is the warranty period ?



A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ ?



A: 1 set is available.



Q: What's the payment method ?



A: We accept T/T and D/P payment.



Q: What is the delivery time ?



A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine ?



A: Of course you can.



Q: How is your product quality ?



A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".
