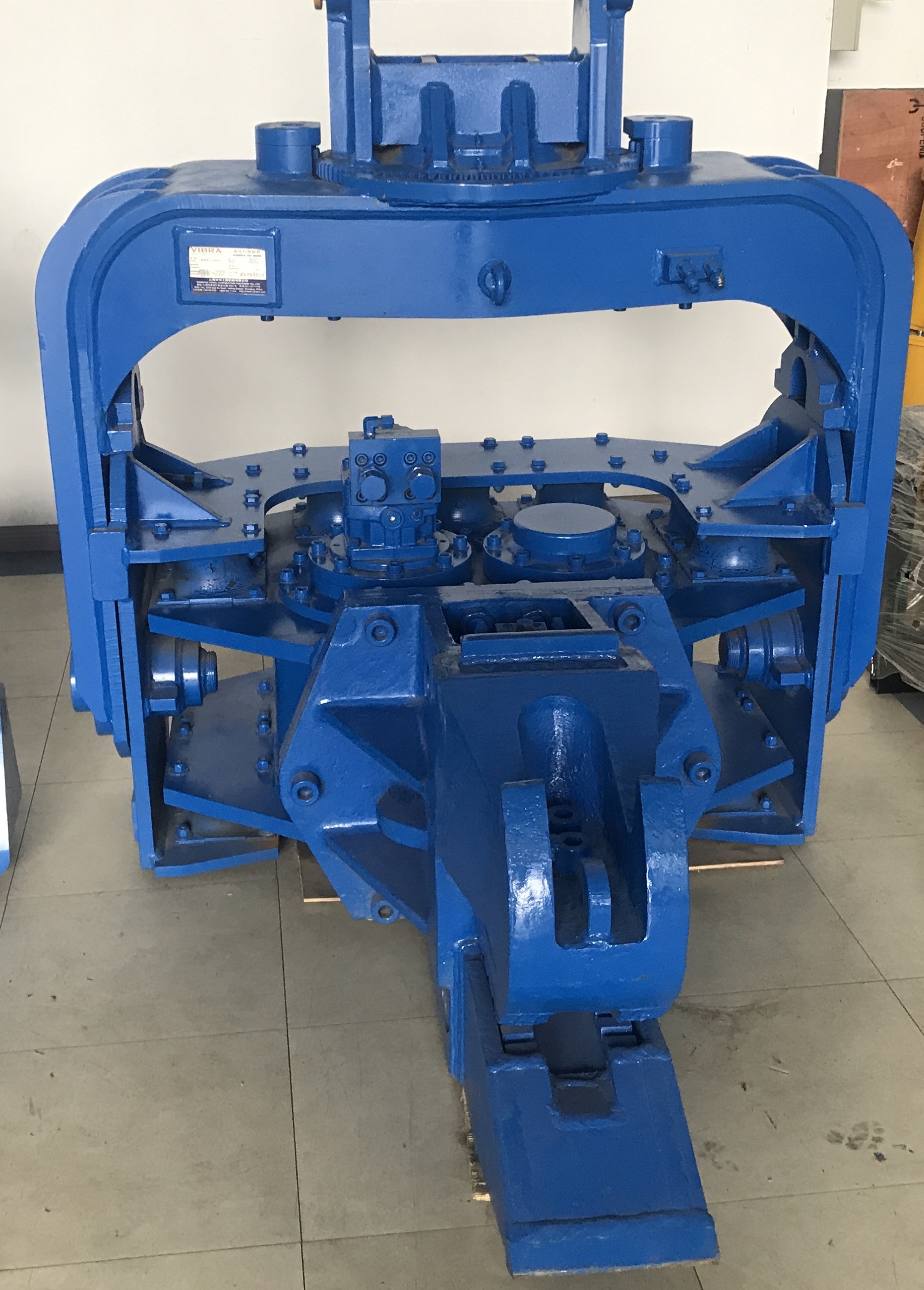

Hyundai Excavator 21m Cast Steel Post Hydraulic Pile Driver
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Vibration | 3200 Rpm | Pressure | 32 Mpa |
|---|---|---|---|
| Centrifugal Force | 585 Kn | Max Pile | 21 M |
| Arm Weight | 820 Kg | Hammer Weight | 3350 Kg |
| Excavator Operating Weight | 55~70 T | Feature | 21 Meter Long Sheet Pile Driver |
| Color | Blue, Customized Color Available | ||
| Highlight | Hyundai Excavator Hydraulic Pile Driver,21m Hydraulic Pile Driver,21m post pile driver |
||
Product Description
Shanghai Yekun Construction Machinery Co., Ltd. is a particular viable involvement with the creation, arrangements and organization of vibrating pile driver for excavator. Its things are basically quick hydraulic pile driver and its incorporating embellishments.
Product Details
This series of machines are famous with clients. The construction of the body is look like with that of the standard Taiwan hammer. The extra parts are replaceable. The case structure has higher necessities for material strength, welding measure and machining precision. We have outrageous control in all bits of assembling to guarantee stable quality. We have suitably produced the best model pcf-500, which matches with almost all brand of excavator.
| Item Model | PCF-300 | PCF-330 | PCF-350 | PCF-450 | PCF-500 | |
| Vibration Frequency | rpm | 3500 | 3300 | 3500 | 3300 | 3200 |
| Operation Pressure | Mpa | 32 | 32 | 32 | 32 | 32 |
| Centrifugal Force | kn | 385 | 420 | 470 | 535 | 585 |
| Max. Pile | m | 12 | 12 | 15 | 18 | 21 |
| Arm | kg | 750 | 750 | 750 | 820 | 820 |
| Hammer | kg | 2750 | 2850 | 2950 | 3150 | 3350 |
| Excavator | T | 27~30 | 33~38 | 40~45 | 47~55 | 55~70 |
Equipment Advantage
- The vibration frequency is high, the stimulating force is huge, and the strength of each fundamental part is high
- Extremely profound cast steel mechanical assembly, expanded oil chamber and interfacing bar, high trustworthiness
- The whole machine configuration is high, and the main parts of Rexroth vibration motor are imported first-line brands
Area of Application
| By assisting different clasps, it can sink and pull out heap of wood, solid pile, steel sheet pile, steel pipe pile, H-shaft steel, steel shield, etc. |
| Applicable for any 6-60 ton excavator of any brand for piling |
| Used in stream bank, house foundation, metropolitan association, interface, photovoltaic pile and various foundations advancement fields |
FAQ
Q: What about warranty period?
A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.
Q: What is the MOQ?
A: 1 set is available.
Q: What's the payment method?
A: We accept L/C, T/T and D/P payment.
Q: What is the delivery time?
A: The delivery time is generally 10-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.
Q: Can I have our LOGO on the machine?
A: Of course you can.
Q: How is your product quality?
A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".
Q: Can I be your dealer?
A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
