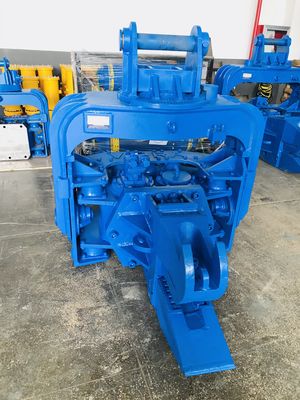

12M Hydraulic Vibratory Sheet Pile Hammer compact structure

  • 12M Hydraulic Vibratory Sheet Pile Hammer compact structure
  • 12M Hydraulic Vibratory Sheet Pile Hammer compact structure
  • 12M Hydraulic Vibratory Sheet Pile Hammer compact structure
  • 12M Hydraulic Vibratory Sheet Pile Hammer compact structure
  • 12M Hydraulic Vibratory Sheet Pile Hammer compact structure
  • 12M Hydraulic Vibratory Sheet Pile Hammer compact structure
Place of Origin Shanghai, China
Brand Name VIBRA
Model Number FV-280
Minimum Order Quantity 1
Price Negotiation
Packaging Details 5.1 CBM
Delivery Time 7-35 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 15 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Vibration Frequency 3200 Rpm Operation Pressure 32 Mpa
Centrifugal Force 335 Kn Pile Length Capacity 12 M
Extension Arm 500 Kg Main Hammer 1900 Kg
Operating Excavator Weight 20~30 T Color Blue
Highlight

12M vibratory sheet pile hammer

,

hydraulic vibratory sheet pile hammer

,

12M hydraulic sheet pile driver
Leave a Message
Product Description

About

Shanghai Yekun Construction Machinery Co., Ltd.  has a tremendous inclusion with the creation, courses of action and association of vibrating pile driver and extractor. Its things are fundamentally speedy excavator mounted pile driver and it's encompassing upgrades. Experienced proficient employees are working in different sorts of framework consistently.

Working Principle

Hydraulic vibrating pile driver demonstrate high recurrence vibration produced by engine and travel the vibration power to the pressure driven vibrating pile driver for the encompassing soil condensing and break its design to lessen the contact; piling or extracting the pile structure the soil ground through excavator. The high recurrence vibration is driven by the hydraulic engine of the excavator.

The hydraulic motor drives the two eccentric axes to rotate at high speed in opposite direction. The horizontal force of the eccentric axis cancels each other without vibration. The vertical forces add up to each other, creating a vertical-frequency vibration.

Product Details

This series of machines are popular with clients. The structure of the hammer body is like of the standard Taiwan pile driver. The spare parts are replaceable. The box bearing is broken and easy to be kept up. The structure of the box has higher necessities for material strength, welding process and machining accuracy. We have extreme control in all pieces of manufacturing to ensure stable quality. We have viably manufactured the greatest model pcf-500, which matches with Cat 365.



Item Model FV-100 FV-150 FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration Frequency rpm 2500 2500 2800 3200 3200 3200 3200 3200 3200
Operation Pressure Mpa 30 30 32 32 32 32 32 32 32
Centrifugal Force kn 117 172 265 335 350 372 435 455 485
Max. Pile Length m 6 8 10 12 12 12 15 15 18
Arm Weight kg 160 260 500 500 670 670 670 750 750
Hammer Weight kg 850 1100 1700 1900 2100 2300 2400 2600 2700
Excavator T 7~12 12~17 20~30 20~30 30~35 33~40 35~40 40~45 45~60





Equipment Advantage



  • The vibration frequency is high, the stimulating force is huge, and strength of each fundamental part is high
  • Extremely profound cast steel mechanical assembly, expanded oil chamber and interfacing bar, high trustworthiness
  • The whole machine configuration is high, and the main parts of Rexroth vibration motor are imported first-line brands



12M Hydraulic Vibratory Sheet Pile Hammer compact structure 0



Area of ​​​​Application



By assisting different clasps, it can sink and pull out pile of wood, solid pile, steel sheet pile, steel pipe pile, H-shaft steel, steel shield, etc.
Any excavator from 6-60 ton operating weight are suitable for piling
Used in stream bank, house foundation, metropolitan association, interface, photovoltaic pile and various foundations advancement fields



12M Hydraulic Vibratory Sheet Pile Hammer compact structure 1

FAQ



Q: Warranty period?

A: 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: MOQ?

A: 1 set.



Q: payment method?

A: T/T and D/P payment. For some countries we allow L/C as well.



Q: Delivery time?

A: Normally 7-35 days, and arrive at Shanghai Port.



Q: Can I have our LOGO on the machine?

A: Of course you can.



Q: How is your product quality?

A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer?

A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
