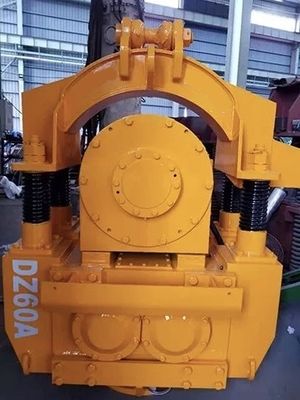

ISO9001 Foundation Electric Pile Driver Vibro Hammer

  • ISO9001 Foundation Electric Pile Driver Vibro Hammer
  • ISO9001 Foundation Electric Pile Driver Vibro Hammer
  • ISO9001 Foundation Electric Pile Driver Vibro Hammer
  • ISO9001 Foundation Electric Pile Driver Vibro Hammer
  • ISO9001 Foundation Electric Pile Driver Vibro Hammer
Place of Origin China
Brand Name Electric Vibro Hammer
Model Number DZ-60A
Minimum Order Quantity 1
Price Negotiation
Delivery Time 15 work days
Payment Terms L/C, D/P, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Excavator Mounted Pile Driver Color Yellow
Total Weight 4320kg Overall Dimensions (H×L×W) 2.24 M×1.21 M×1.37 M
Highlight

Yellow Electric Vibro Hammer

,

Yellow Electric Pile Driver

,

ISO9001 pile drive hammer
Leave a Message
Product Description

DZ60A is currently the most widely used pile foundation construction equipment in China.

1. The equipment is designed for low noise, clean and environmentally friendly

2. The gearbox lubricating oil is a heavy-duty gear oil for German Volkswagen, which does not need to be replaced within one year under normal operation

3. The shock-resistant motor is the top domestic brand

4. High-quality after-sales service, our after-sales engineers will provide you with after-sales and technical related services at any time



Product parameter

DZ60A
Motor Power 60 kW
Vibration frequency 1000 R/MIN
Eccentric moment 360 Nm
Exciting force 450 kN
No-load amplitude 9.6/10 mm
Allowable pulling force 200 kN
Dimensions (height×length×width) 2.24 m×1.21 m×1.37 m
total weight 4320 kg
Can be equipped with fixture Single fixture
Generator power 200 kW
Crawler crane specifications 35 t



1. Working based on two stroke internal combustion diesel engine principle

2. Soft soil starting, cold starting very well
3. Simple structure, convenient for maintain
4. Combine with our company walking pile frame, and reach a good performance
5. Widely used for metal stake, concrete stake, infuse stake and tamp stake
6. Application: Port, wharf, airport. Superhighway, railroad. High foundation building
